PVC Ball Valve

PVC Ball Valve

Regular price £9.90 GBP
Regular price Sale price £9.90 GBP
Sale Sold out
Tax included.

Ball Valve Plain x Plain

Description

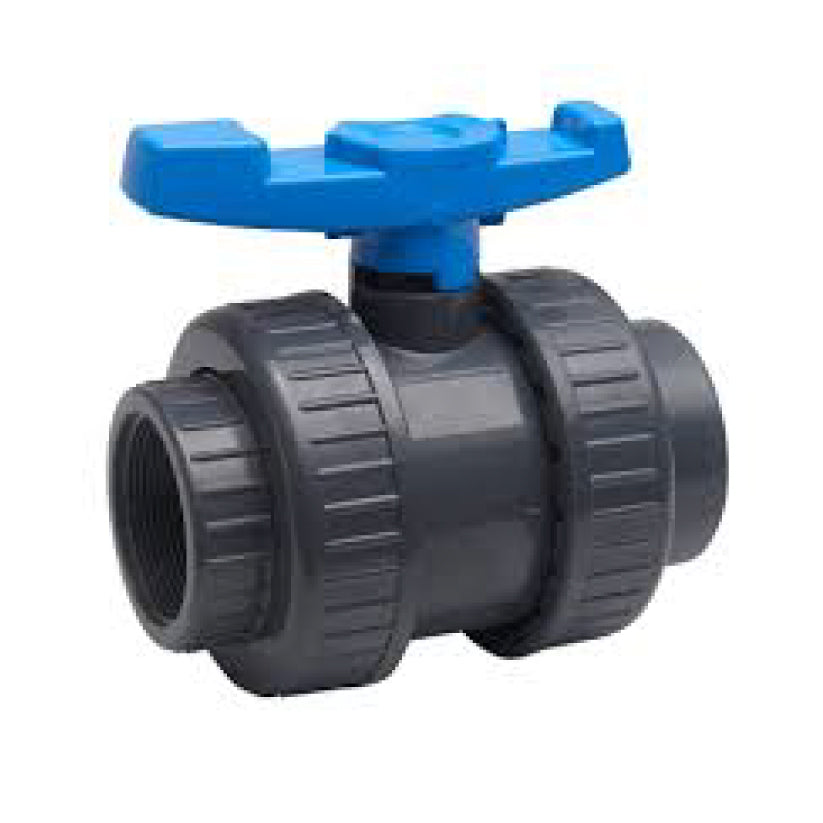

These double union PVC ball valves have excellent corrosion-resistant characteristics and can be dismantled for maintenance and inspection purposes.



Sizing - Solvent Weld Pipe & Fittings

Imperial (inch) PVC pipe and fittings sizing is not straightforward. They are sized by their nominal bore or approximate inside diameter.

The following table details pipe outside diameters (o.d.) for each imperial size.  The inside diameter (i.d.) of the socket end of the corresponding fitting will be the same as the outside diameter of the pipe.

Pipe Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
Outside Dia mm 21.4 26.7 33.6 42.2 48.3 60.3 75.2 88.9 114.3



Sizing - BSP Threads

The following table details approximate thread diameters for male BSP threads.

Nom Pipe Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
Thread Dia mm 21.0 26.4 33.2 41.9 47.8 59.6 75.2 87.9 113.0
